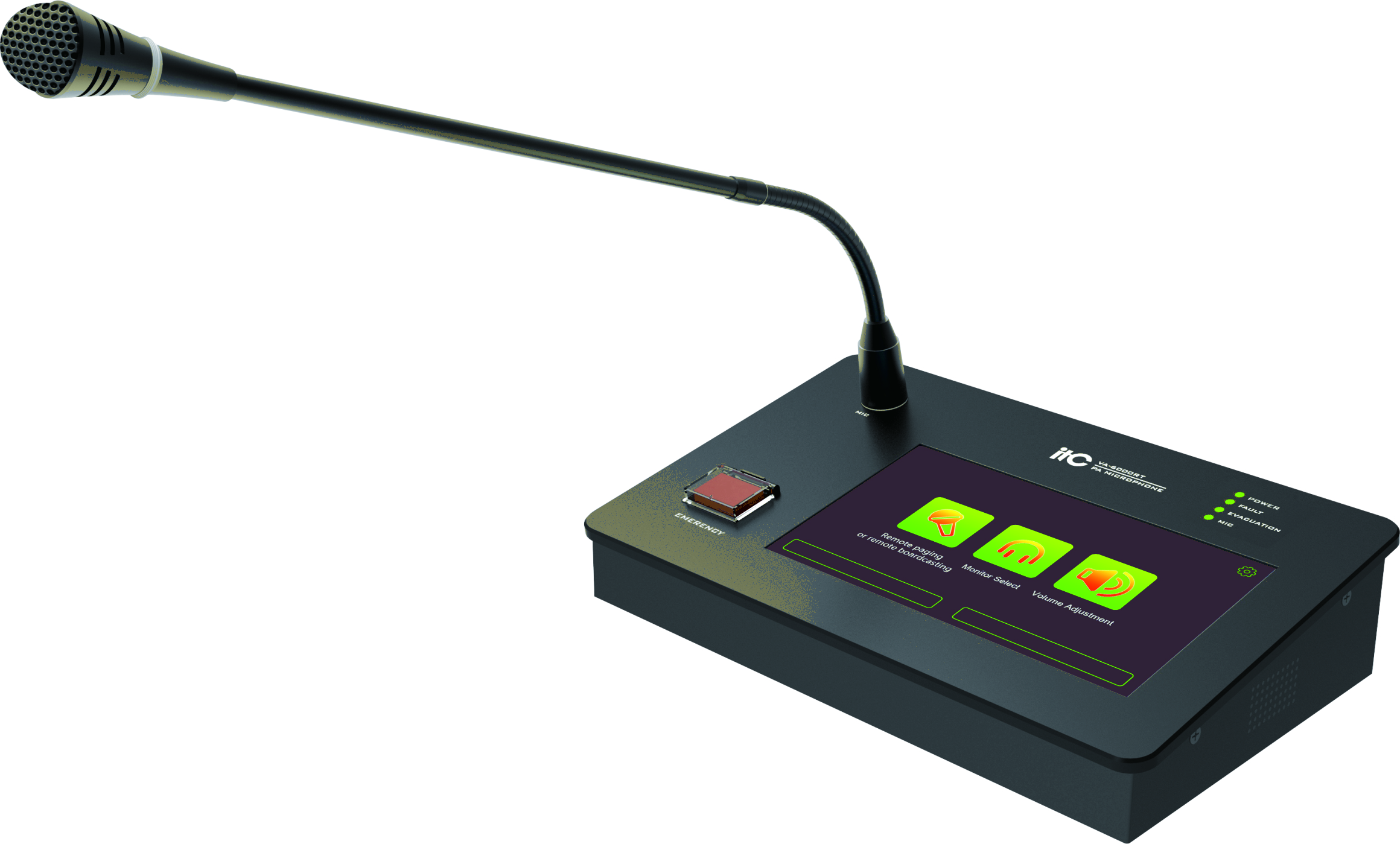

VA-6000RT Remote Paging Microphone

Descriptions:

VA-6000RT is used for remote operating VA-6000 system, allowing users to remotely control system voice information and zones paging. Support system zones/groups selection, zones monitoring, zones volume adjustment, zones status display.

Features:

* IPS HD full view display, graphical touch operation, what you see is what you get.

* System synchronizes the zones/groups name display, simple operation.

* The icon partition status display, more images, more content.

* It can adjust the volume for each zone and monitor the current playing content of each zone.

* The rear panel can be used for external audio source and can be broadcast to any zone.

* Standard Ethernet digital transmission can extend the transmission distance through optical fiber.

* The priority and emergency voice operating privileges of the VA-6000RT can be configured by the system.

Specifications:

Model	VA-6000RT
Screen
Size	7inch
Resolution	1024 x 600
Visual Angle	Full Angle
Touch Screen Type	capacitive screen
Power Supply
Voltage	24V DC, ±20%
Max Current	0.5A
Max Power Consumption	12W
Standby Power Consumption	9W
Performance Index
Line Input
Sensitivity	775mV
Input Impedance	10KΩ
MIC Input
Microphone Type	415mm Goose Neck MIC
MIC Type	Standing in
Sensitivity	10mV
Impedance	250Ω
Monitor Audio Output
Rated Output	600mV
Output Power	10mW (Drive 16-32Ω earphone)
Frequency Response	100Hz~20KHz
THD	<1% (Rated Output), 1KHz
SNR	>70dB
Monitor Speaker
Output Power	1.5W
Impedance	4Ω
Mechanical Data
Dimension(Length x Width x Deep)	245 x 71 x 154mm
weight	Machine: 1.44KG  Power Supply: 0.3KG
Installation Type	Desktop
Color	Black
Environment Requirement
Working Temperature	+5℃ ~ +40℃
Storage Temperature	-20℃ ~ +70℃
Relative Humidity	<95% (without condensation)
