TS-F156ZMA Motorized Paperless Interactive Monitor Lift With Array microphone (Delegate)

TS-F156ZMA Datasheet

Jaminan Garansi

  • Check Mark 3 Tahun Speaker System
  • Check Mark 2 Tahun Conference System
  • Check Mark 1 Tahun LED Display System
Categories: , ,

Description：

The integrated design of the lift and the array microphone, without back board connection, looks neat and elegant. It can work with the paperless conference terminal to display the required patterns and other information. The machine can perfectly realize the powerful interactive paperless conference function with the array microphone.

Feature：

* The machine adopts an all-aluminum structure, high-quality aluminum material and CNC engraving processing treatment; the overall display frame and the cabinet adopt aluminum alloy, making the overall machine exquisite, light, beautiful.

* The surface of the machine is anodized and looks bright.

* The panel is space-saving with 3mm in thickness only. It is only one-third weight of the conventional lift, which reduces transportation cost and the pressure of conference table.

* The transmission structure is specially treated to minimize the noise; it adopts high-quality stretch-resistant belts, high-precision sliding guide rail and linear bearings, and AC gear motor as the driving power; the central control protocol, with strong compatibility, can be compatible with all computer controllers. The screen is powered on when turning up, and is powered off when turning down, which is environment friendly.

* Support HDMI and VGA signal input. When there is only one signal input, the screen will automatically recognize the signal. When two signals are input at the same time, it can be manually switched through the panel buttons. When no signal input, the screen will automatically enter power saving mode.

* This machine can be centrally controlled by the central control software and the controller. One key can make all the machines in the room go up or down.

* The microphone uses a 48KHz sampling rate, better than the CD sound quality, clear and bright sound, without the low-frequency impact sound.

* The delegate unit has the function of applying for speech, and the application can be approved by the chairman unit with a screen or with a “3” key, or by the PC software.

* 5-band EQ adjustment function, can adjust different sound effects according to the voice characteristics of the speaker until the perfect effect is achieved.

* Use 100M network transmission to realize hand-in-hand cascade; long-distance transmission will not have any impact on sound quality.

* Non-gooseneck microphone pickup, the array pickup distance can reach 60cm. Good directivity, cystic pickup area, effectively avoid the surrounding noise pickup.

* Electric flip structure, which can be flipped up when speaking, and down when not speaking. It can be controlled by buttons or unified management by the controller and PC software.

Specification：

Model TS-F156ZMA
Home screen Support touch
Power supply AC 220V 50-60/HZ
Lift time 28S
Elevation angle 30
Product Size 430*130*565mm
Cabinet size 415*126*562mm
Panel size 430*130*3mm
Desktop opening size 417*127mm (recommended to open hole according to the actual product)
Panel sink size 431*131*3mm (length * width * thickness) (recommended to open hole according to the actual product)
Environmental conditions -20℃～50℃ Humidity≤70%
Main screen size 15.6 inches
Main screen ratio 16:9
Main screen resolution 1920*1080p
Video interface VGA, HDMI
Video switching VGA, HDMI (switch manually)
Main screen contrast 500:1
Home screen brightness 220cd/㎡
Viewing angle 45/45/20/40 (Typ.)(CR≥10)
Signal system EDP
Power consumption 20W
Weight Gross weight: 11.5KG Net weight: 10.6KG

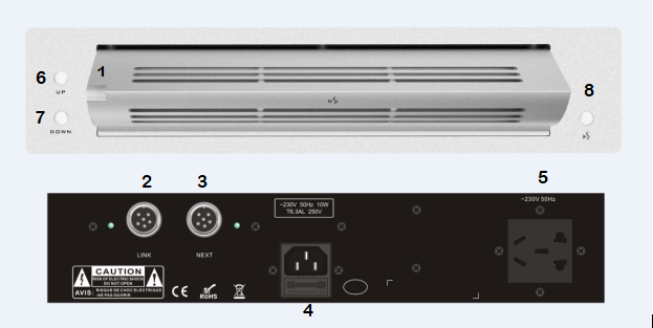

Array microphone function introduction：

null

  1. Microphone status indicator;
  2. Connect the port of the previous conference unit;
  3. Connect the port of the next conference unit;
  4. 220V power input port of AC power supply;
  5. AC power source 220V power output port;

6.UP——turn up the microphone button;

7.DOWN——the microphone down button;

  1. ON/OFF——On/off button on behalf of the unit MIC microphone;

Array microphone Specification：

Microphone type ECM array wired microphone
Number of microphone cores 13
Frequency response 80Hz~16KHz
Microphone input impedance 200Ω
Sensitivity -30dB (0dB=1V/pa, @1kHz)
Signal to noise ratio >80dB(A)
Dynamic Range >80dB
Maximum SPL 112dB (THD≤0.5%, @1KHz)
THD <0.1%
Directivity Corridor type
Standard IEC60914
Connector Aviation 6-pin male
Power supply Host power supply, AC power supply 220V power supply
Sign-in function Key sign in
