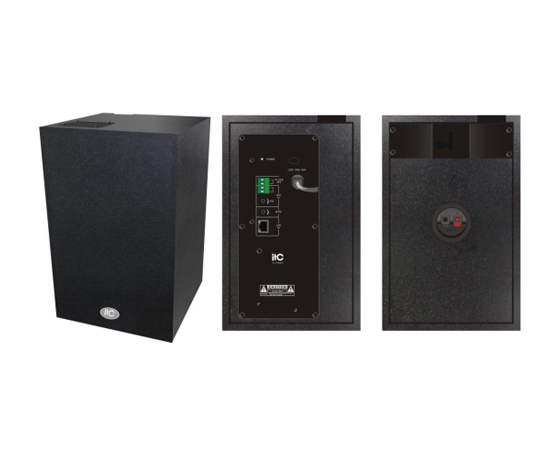

T-7707B Economic Wall Mount Active Speaker

Application:

It is widely applicated to ordinary classrooms, multimedia classrooms, offices, meeting rooms, prisons, hospital departments, subway and other places to play a recorded voice file or background music. It also can be used as a local PA broadcast.

Features:

*  Professional integration wall mounted design, the speaker case designs is conform to sound resonance principle design concept, with excellent appearance.

*  Adopted embedded computer and DSP audio processing technology.

*  Built-in one channel network hardware audio decoding module, it supports TCP/IP, UDP, to realize the network transmission of 16-bit CD-quality audio signals.

*  Built-in 2 channel digital amplifier 2 x 20W, 1 channel to connect main speaker, another connect sub-speaker to fulfill smooth and strong sound quality, with network volume setting.

*  Built-in high performance main/standby switching module, off the net Power failure main/ standby switch time less than 0.3 seconds, and the standby/main switching time is less than 0.3 seconds when the network is powered on.

*  With 1 AUX input, independent volume potentiometer control, support offline local paging function. Support mute volume preset and background music mix output preset.

*Support 2.4G wireless audio module can be expanded to realize local amplification of the 2.4G wireless microphone.

*Support connecting with Bluetooth receiver to receive Bluetooth audio for local sound broadcasting.

*  1 channel 100V constant voltage signal backup input, only switch to the backup channel when the machine has no network.,to avoid crosstalk between local signal and backup signal.

*  Built-in 2 priority settings:

1) Network voice alarm has higher priority than AUX and Network BGM

2) AUX has higher priority than Network BGM

*  Compatible with any network structure such as routers, switches, bridge gateways, Modem, Internet, 2G, 3G, 4G, etc.

*  Easy extension, no geographic location restriction, no need additional managerial equipment, adopted design concept of common network-free line construction, easy to install.

*  It supports remote hardware upgrade of the terminal, no need go to upgrade at the local site, to reduce maintenance burdens and make more simple operation.

Specifications:

Model	T-7707B
Network Interface	standard RJ45 input
Transmission Speed	100Mbps
Protocol Support	TCP/IP,UDP
Audio Format	MP3
Audio Mode	16-bit CD quality
Sampling Rate	8K~48KHz
AUX Input Sensitivity	350mV  (unbalanced)
Frequency Response	80Hz~16KHz +1/-3dB
THD	≤1%
SNR	>65dB
Power Consumption	≤50W
100V Input Backup	yes
Circuit Protection	Overload, short circuit protection
Operating Temperature	5℃~40℃
Operating Humidity	20%~80% relative humidity, non-condensing
Operating Power Supply	190-240V 50-60Hz
Size	190×180×280mm
Weight	3.5Kg
