T-592UW Wireless Microphone

Description:

It is a digital wireless microphone system with a new solution architecture. The system adopts unique digital U-band transmission technology and pi/4-DQPSK modulation mode. It is characterized by low bit error rate, stable transmission and strong anti-interference ability. In addition, it adopts ID code pilot technology to prevent co-frequency crosstalk, and adopts frequency sweep to avoid interference, etc.

Feature:

*  Adopt unique digital U-band transmission technology, pi/4-DQPSK modulation mode, with strong anti-interference ability, low bit error rate, stable transmission.

*  Adopt unique encryption method for audio transmission to ensure the security of conference content.

*  Adopt unique ID code pilot technology to prevent cross-frequency interference.

*  One-key frequency weep to avoid interference; one-key IR frequency pairing, easy to operate.

*  With reverberation, treble/alto/bass adjustment.

*  With two balanced outputs and one unbalanced mixing output.

*  The receiver panel is exquisitely crafted and neatly designed.

*  The receiver uses a 2.2-inch TFT-LCD screen to display more delicate information.

*  The transmitter uses an OLED display to easily obtain the current information of the device.

*  The transmission power is adjustable, and the transmission power can be adjusted as needed.

*  With a volume adjustment key, the transmitter volume can be adjusted.

*  With one-key mute function, strong practicability.

*  With low power consumption design, the maximum continuous speaking time can exceed 10 hours.

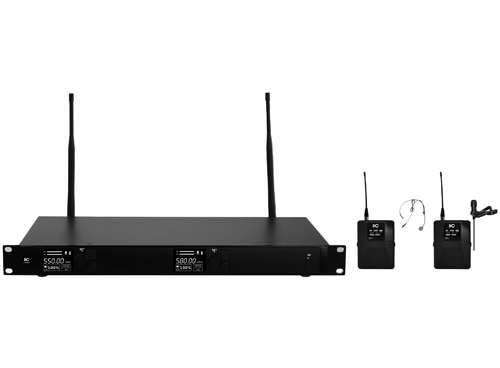

*  The system includes a receiver + a headset wireless microphone + a lapel wireless microphones.

Specification:

Model	T-592UW
System parameters
Frequency range	640MHz-690MHz
Modulation mode	pi/4-DQPSK
Frequency response	20Hz~20kHz (±3dB)
SNR	≥105dB (XLR)
THD+N	<0.1%
Working distance	About 80m
Receiver parameters
Antenna interface	BNC/50Ω
Receiver sensitivity	＜-95dBm
Maximum output	Balanced output 500mV, unbalanced output 1000mV
Power supply	DC 12V/1.5A
Working current	≤320mA
Dimension (L*W*H)	443×212×44mm
Weight	2.225kg
Transmitter parameters
Mic type	Condenser Microphone (Headset Microphone/Lapel Microphone)
Output power	≥10dBm
Working current	≤200mA
Battery capacity	2×1.5V(AA)
Battery life	>10H
Dimension	86mm*65.3mm*23.8mm(excluding mic cartridge)
Weight	185g (including battery)
